Description

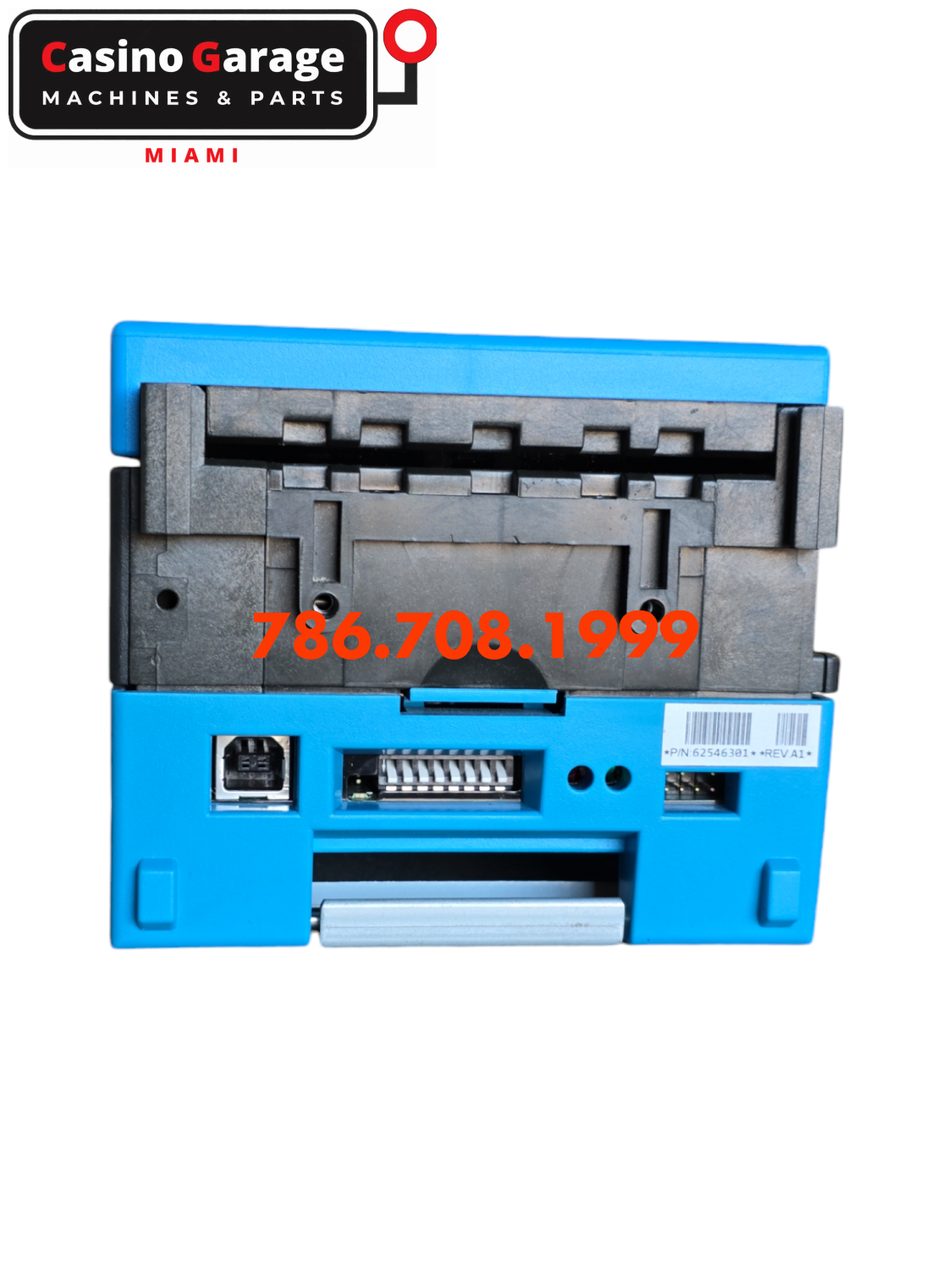

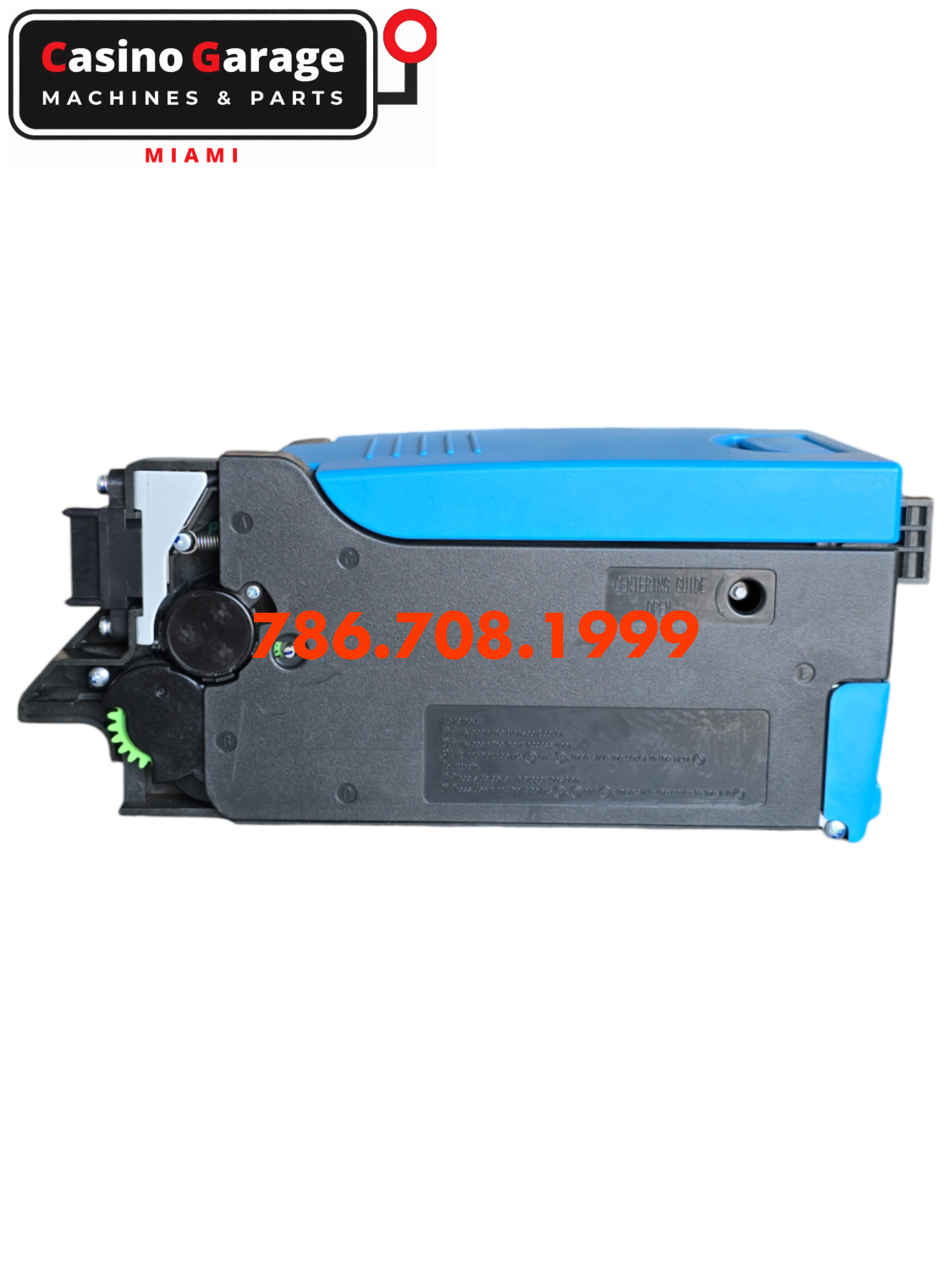

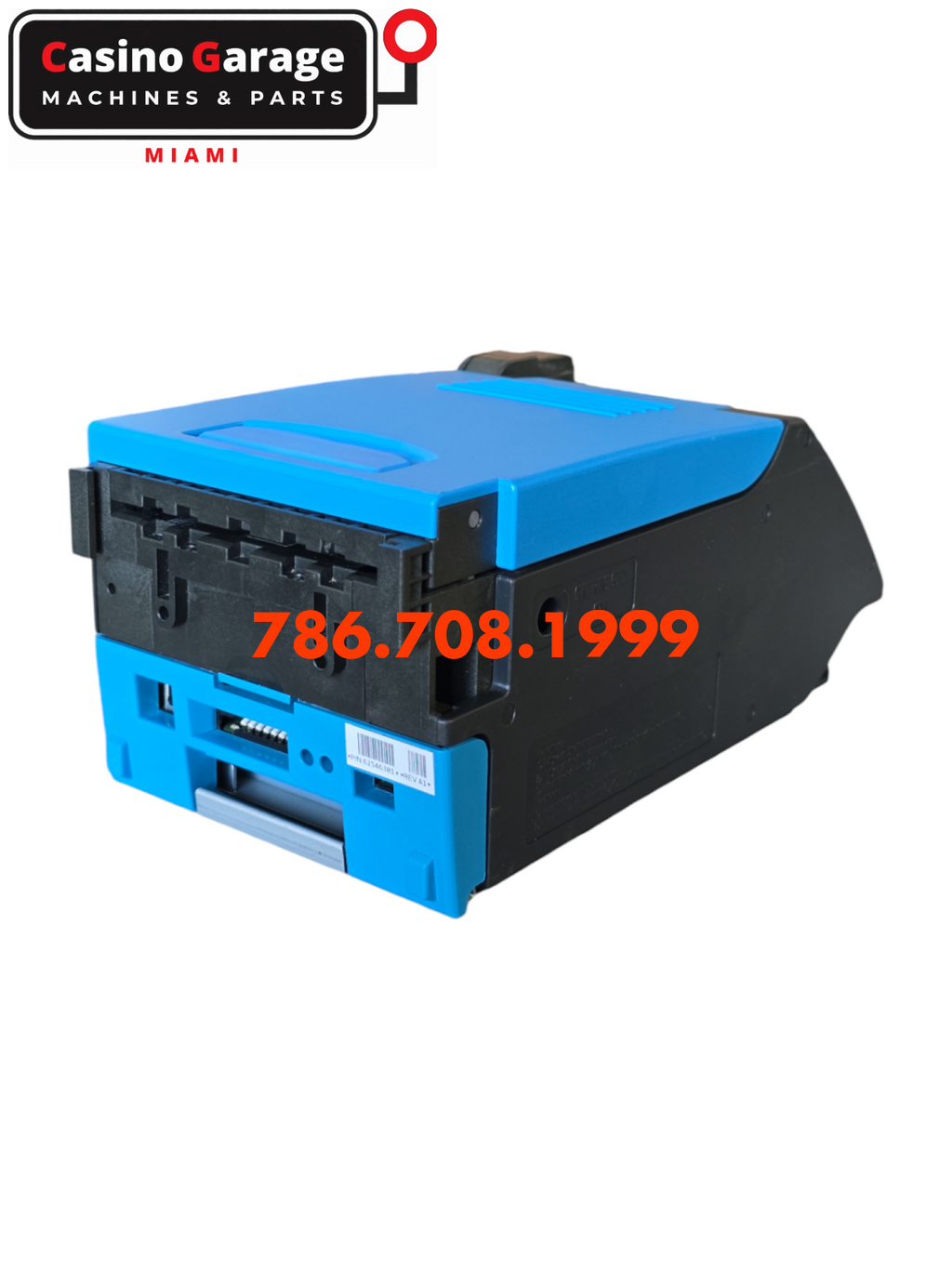

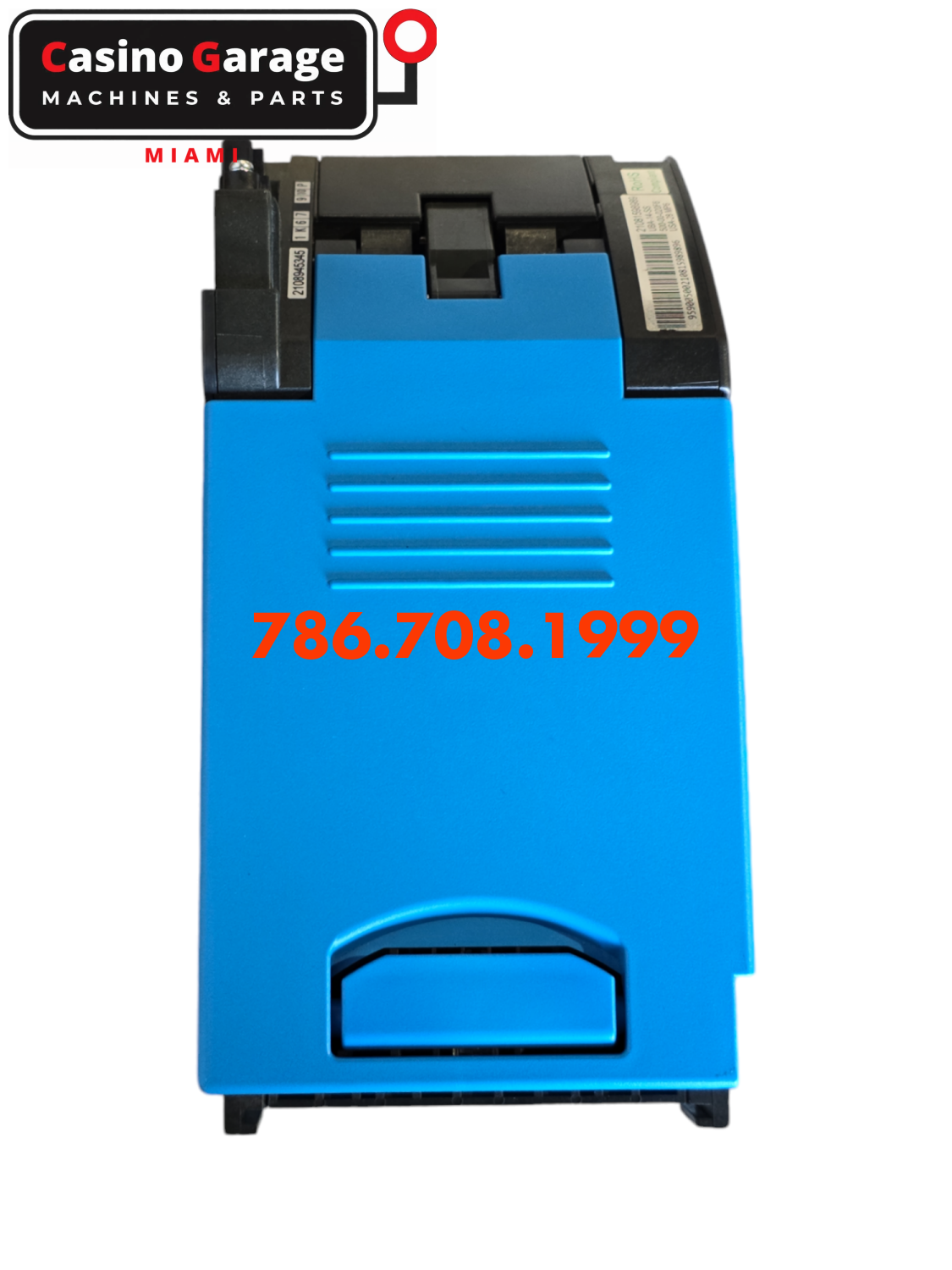

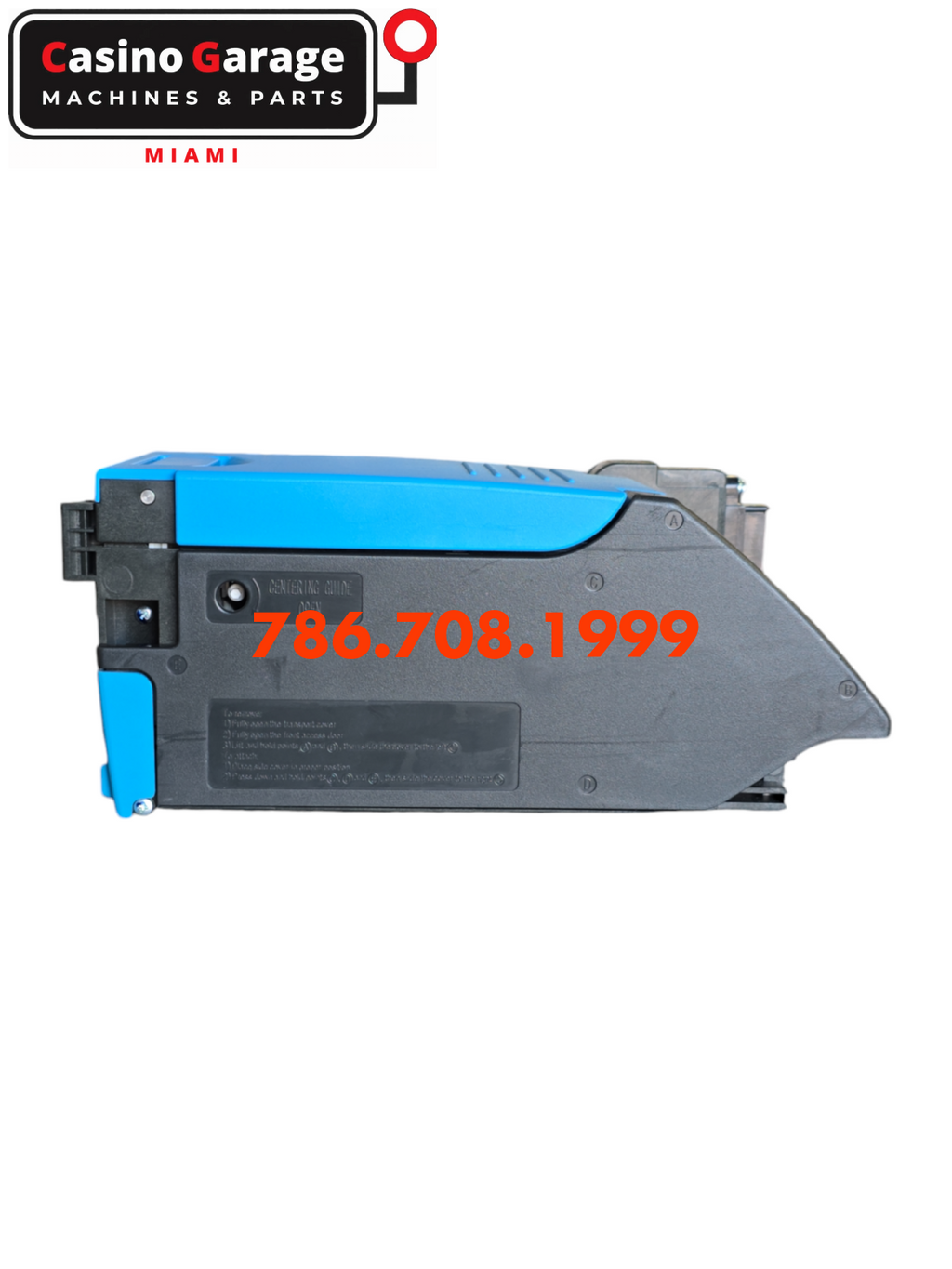

The JCM UBA-14 Bill Validator Head Only is a bill validator head manufactured by JCM. This unit is used. It is listed for use in cabinets fitted with the JCM UBA bill validator. Casino Garage supplies replacement parts for casino slot machines and ships worldwide from our warehouse in Miami, Florida.
Part numbers and cross-reference
- Part number: 62546301

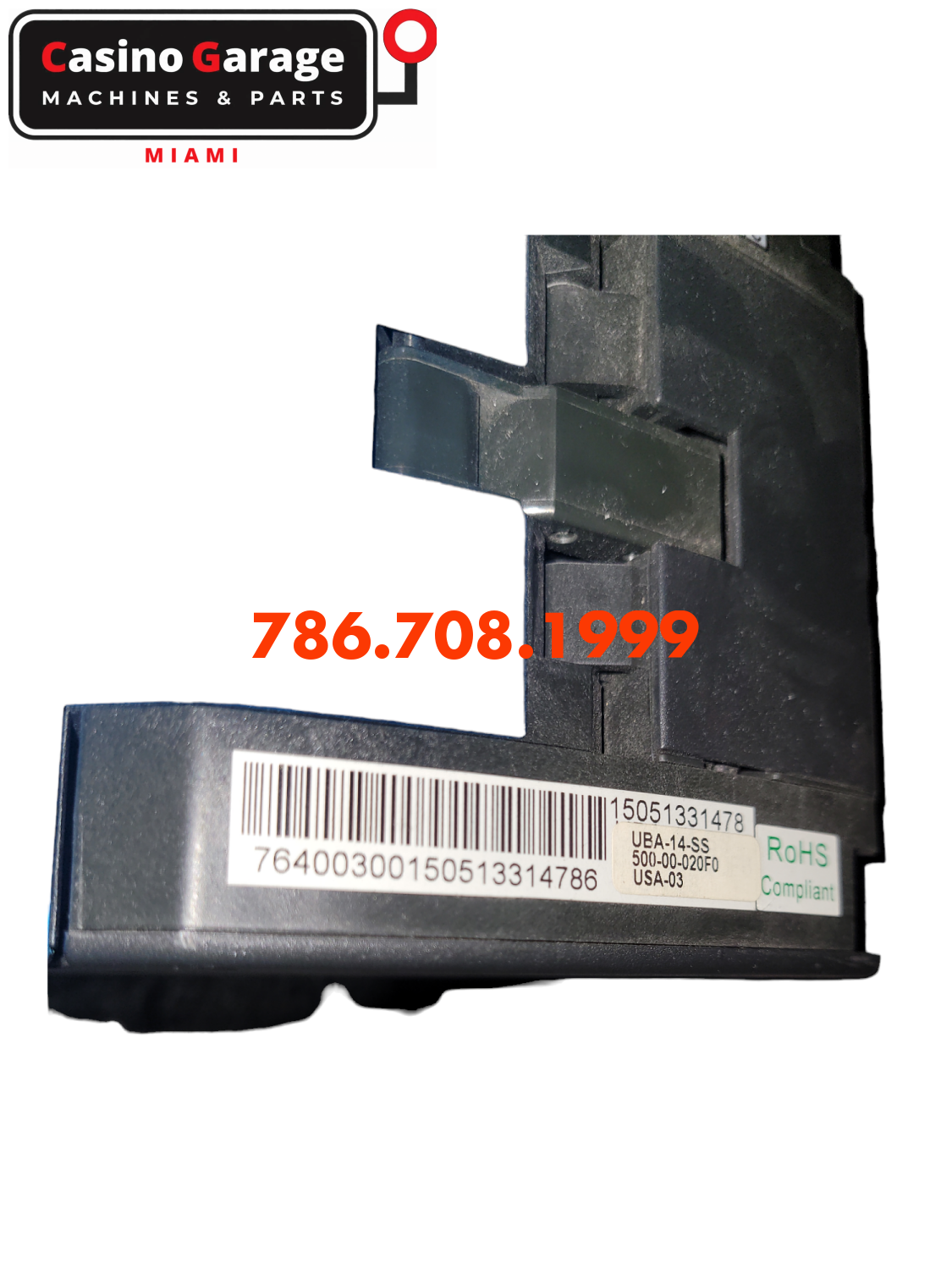

- JCM model: UBA-14-SS
- In IGT documentation: B/A, UBA-14, USB/NETPLEX, STD, V2
- Casino Garage SKU: SPQR-JCM-BIL-111
IGT lists this head in its S3000 parts documentation as "B/A, UBA-14, USB/NETPLEX, STD, V2" under the same number 62546301. If your machine lists this part under a different number, send us the number you have and we will confirm whether it is the same part before you order.
Compatibility
- Cabinets fitted with the JCM UBA bill validator
- IGT S3000
This is the head only. It does not include the frame or the cash box. Compatibility is listed to the best of our knowledge based on the unit we have in stock.
Specifications
| Manufacturer | JCM |
| Model | UBA-14-SS |
| Part number | 62546301 |
| SKU | SPQR-JCM-BIL-111 |
| Part type | Bill Validator Head |
| Interface | USB / Netplex |

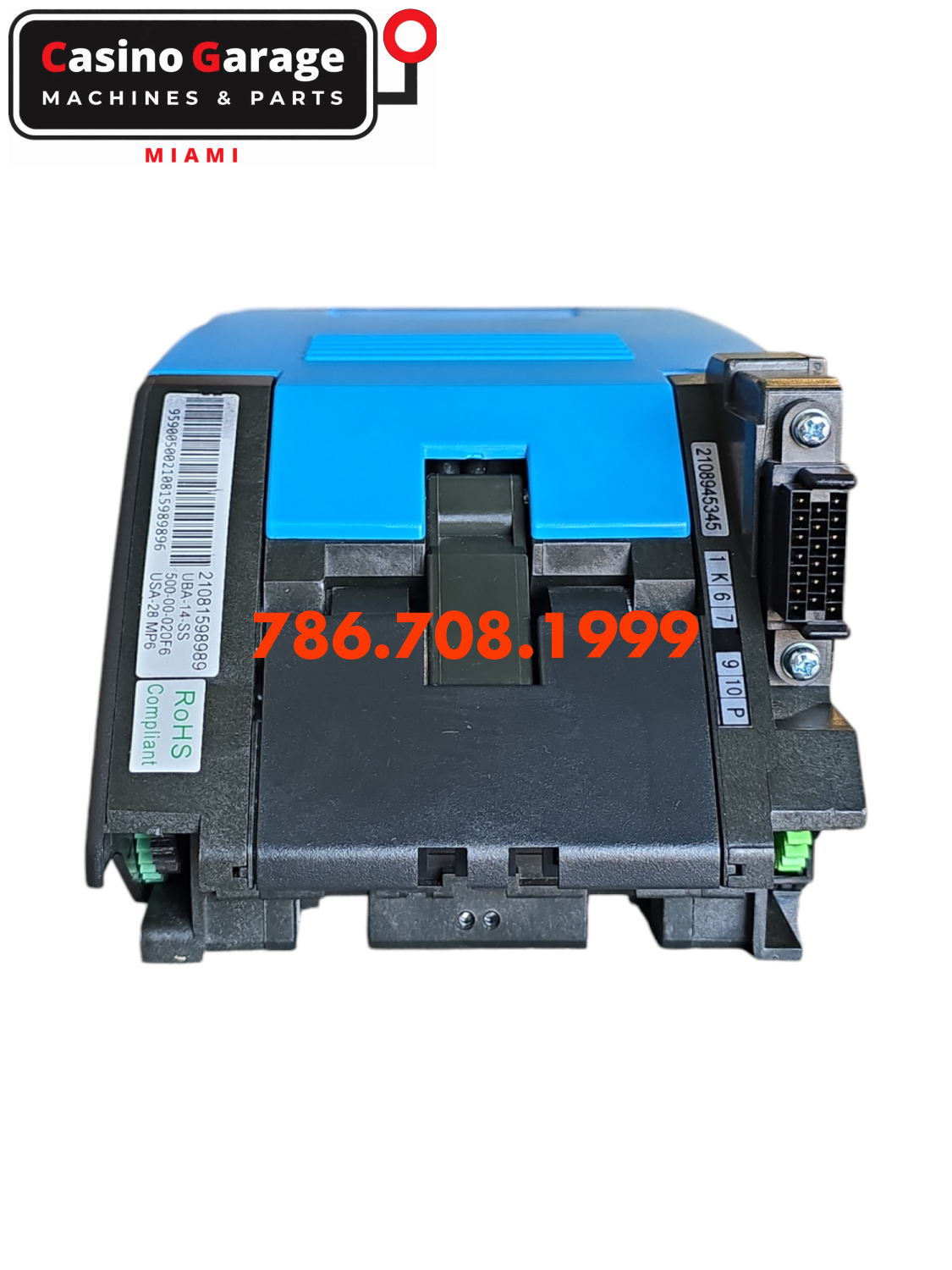

| Connector | 14 pin |
| Condition | Used |
| Dimensions | L: 4-1/2 In (11.43 cm) - W: 9 In (22.86 cm) - H: 3-3/4 In (9.53 cm) |
| Weight | 2.92 lb (1.32 kg) |
| Ships from | Miami, Florida, USA |
What is included
- 1 x JCM UBA-14 bill validator head
- Manual
The frame and cash box are not included and are sold separately.
Installation notes
- Power down the cabinet and disconnect it from mains before removing any component.
- Photograph the existing wiring and connector positions before disconnecting them.
- This head is flashable for other currencies. Tell us the country you operate in and we will confirm the currency set before shipping.
- Installation should be carried out by a qualified slot machine technician, in line with the jurisdiction's gaming regulations.
Frequently asked questions
Is the 62546301 the same as the UBA-14 USB/Netplex head?
Yes. IGT documents this head in its S3000 parts list as "B/A, UBA-14, USB/NETPLEX, STD, V2" under part number 62546301.
Does this include the frame and the cash box?
No. This is the head only. The frame and the cash box are separate parts and we stock them separately.
Can it be flashed for another currency?
Yes. Tell us the country you operate in and we will confirm the currency set before shipping.
What condition is this part in?
It is listed as used. Ask us for photographs of the exact unit in stock before ordering.
Do you ship internationally?
Yes. We ship worldwide from our warehouse in Miami, Florida.
