Description

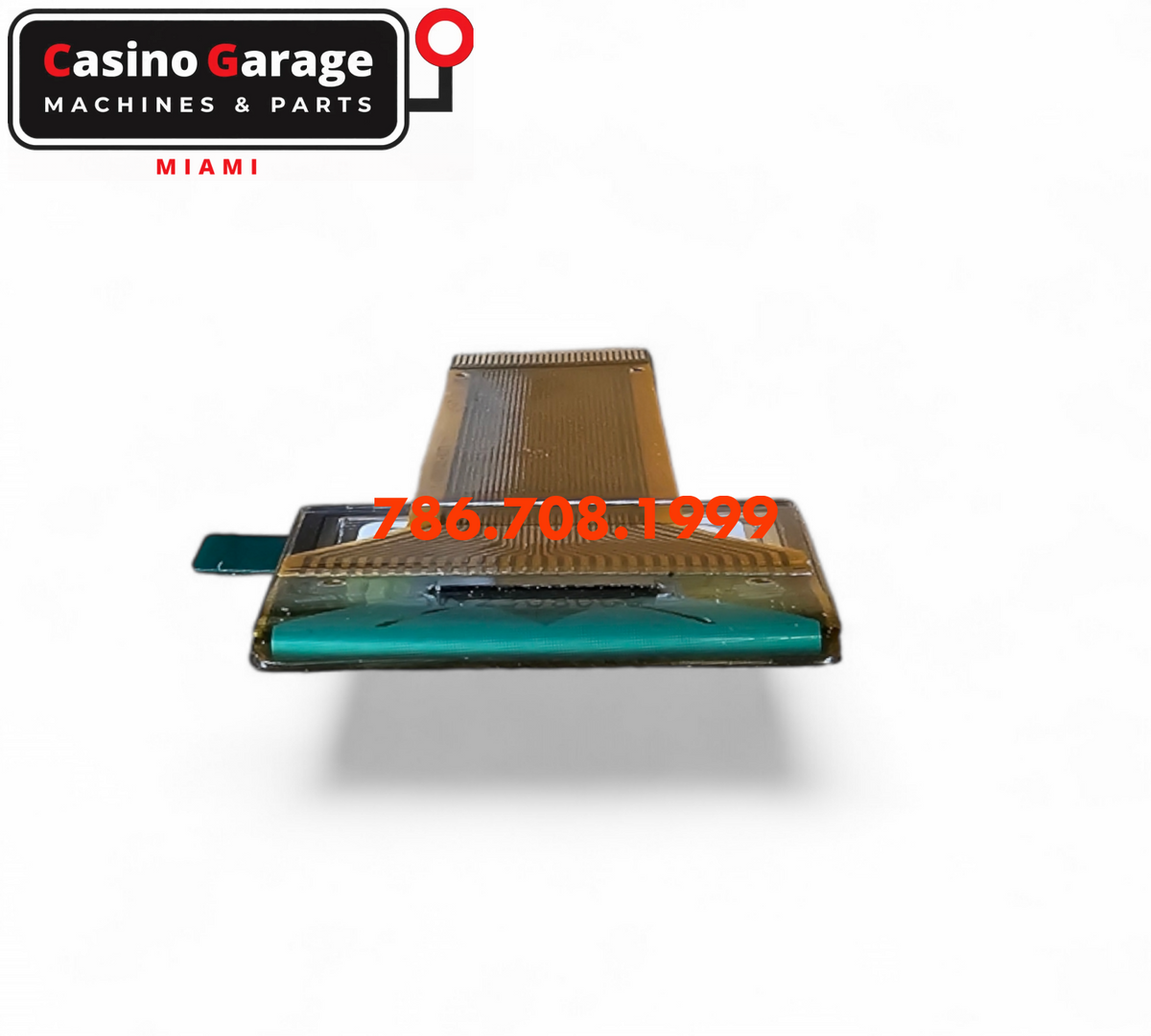

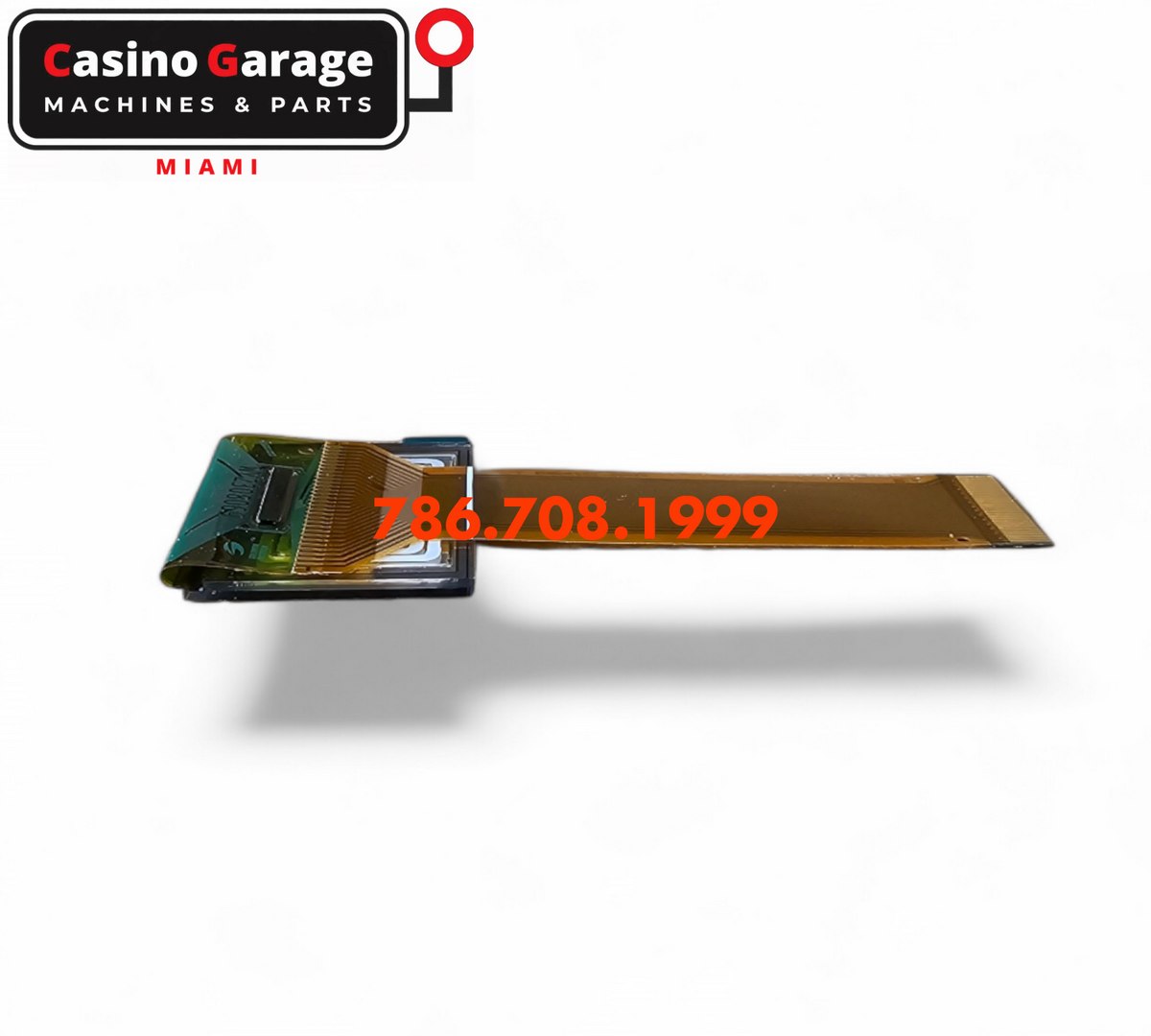

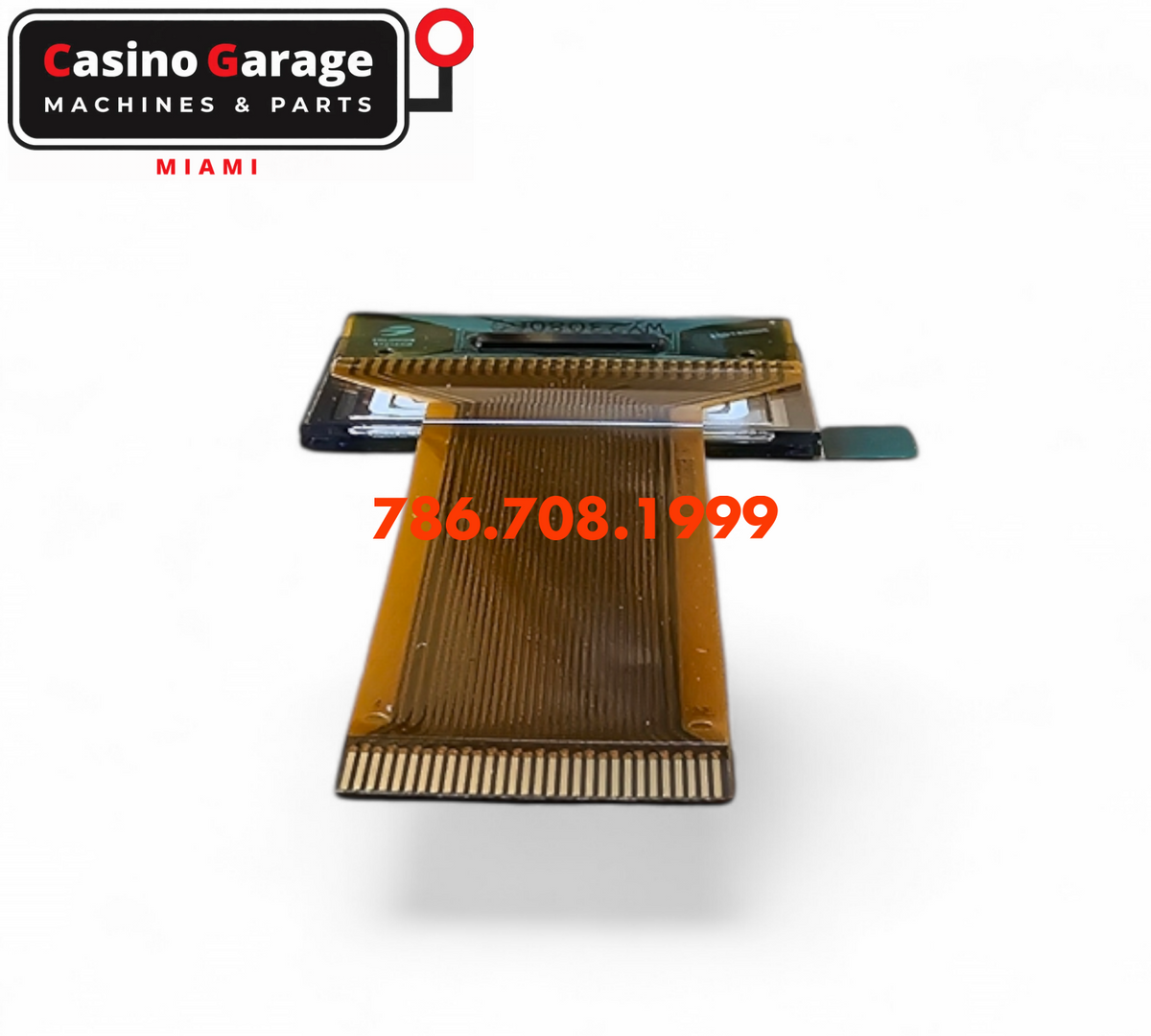

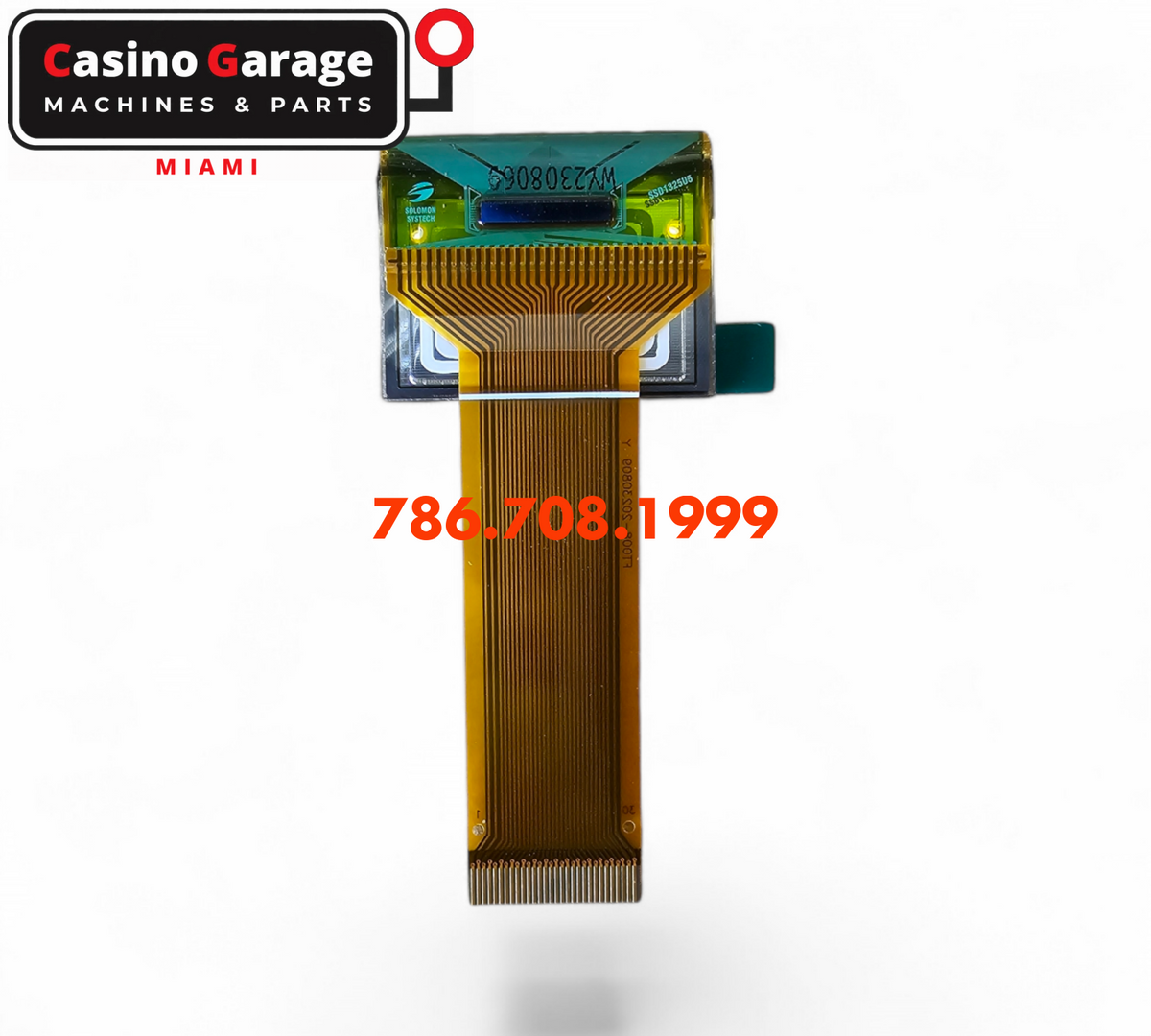

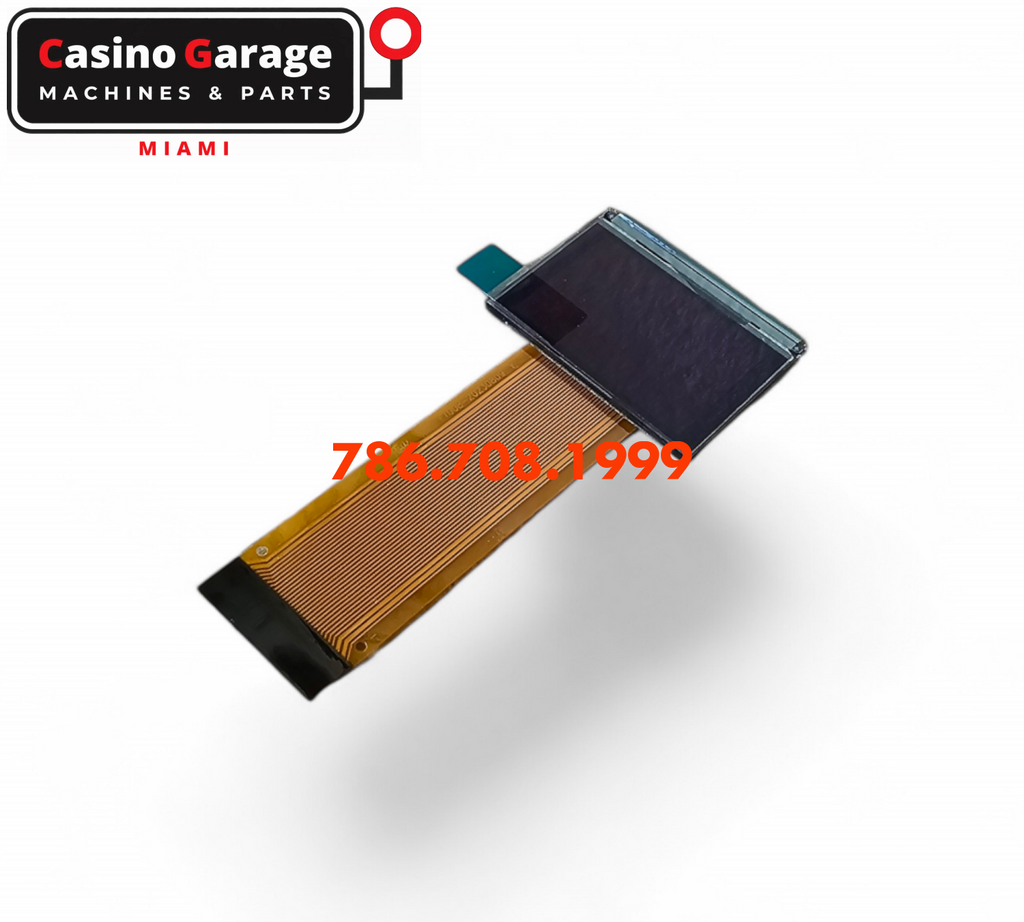

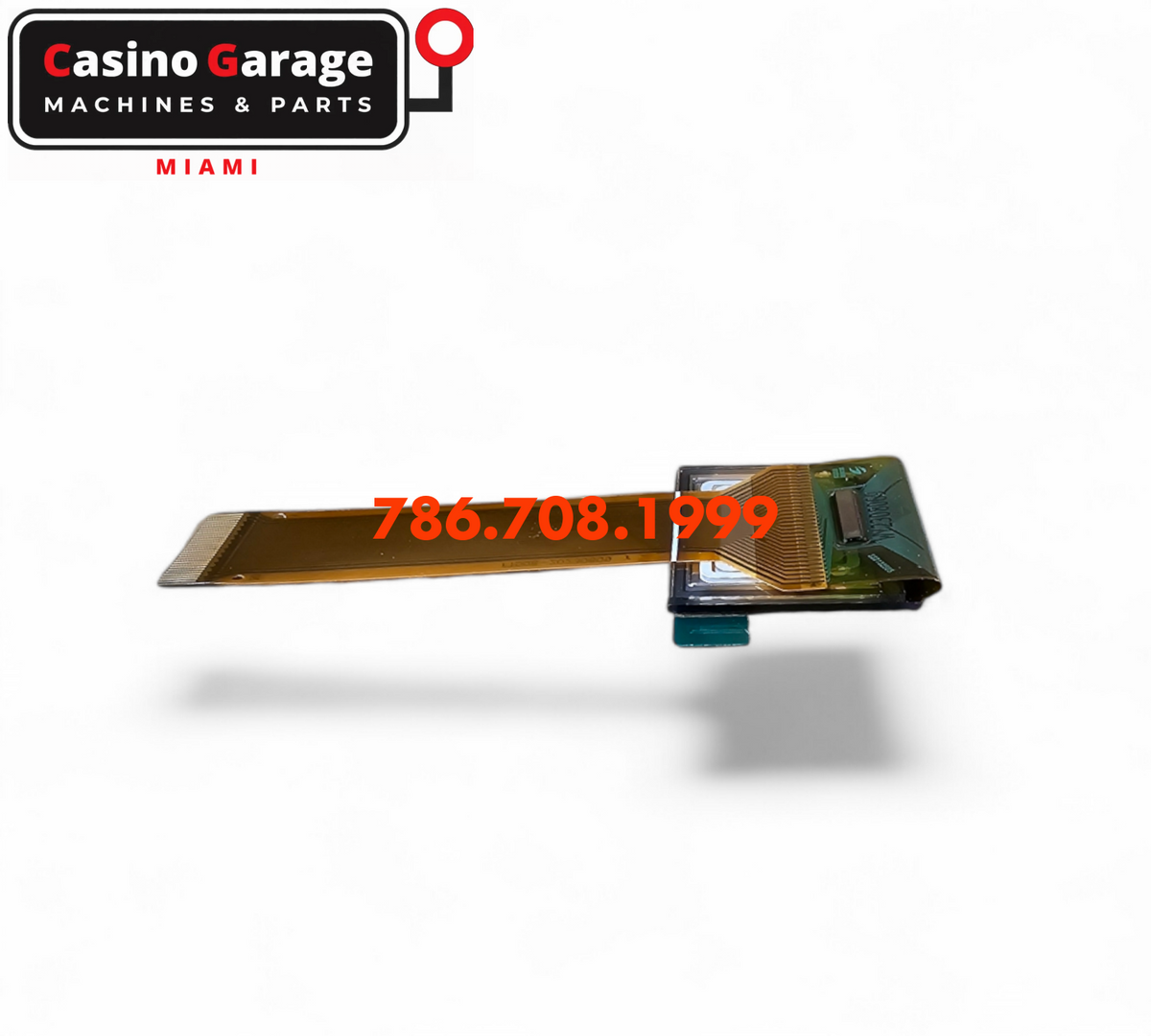

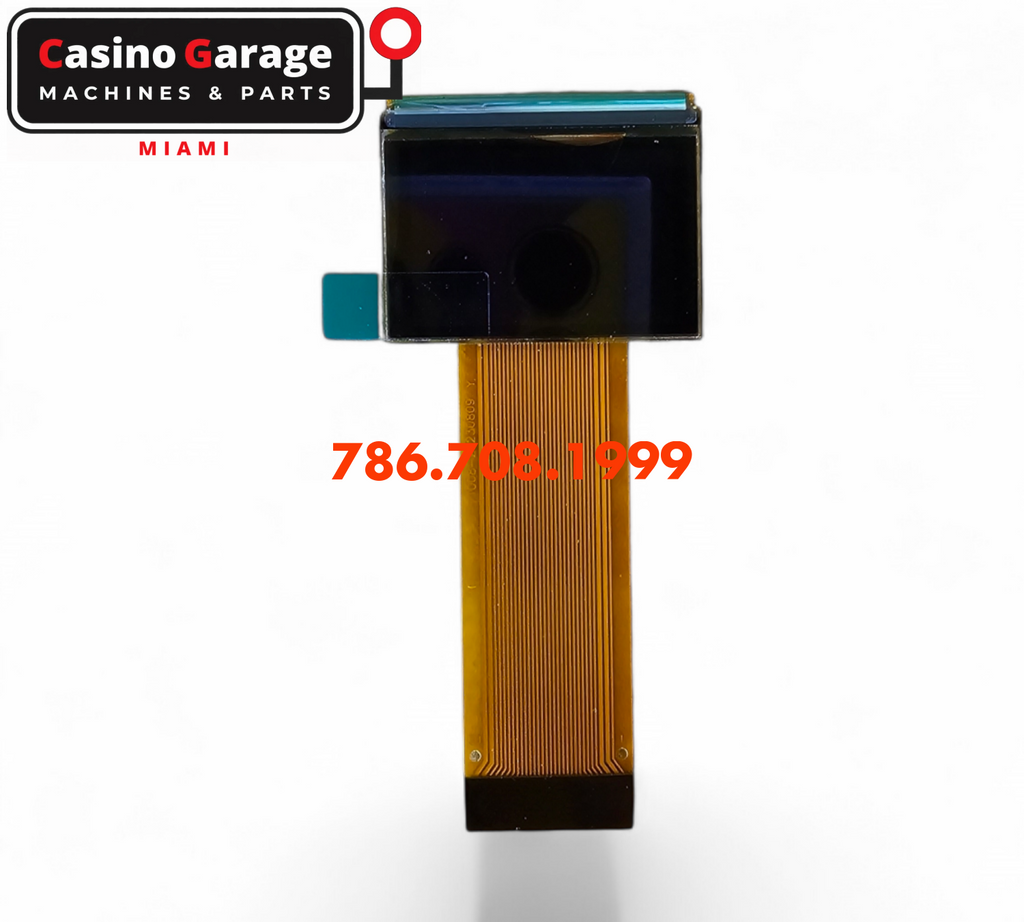

The Ainsworth A560,WMS BB2-WMS OLED Small Liq Resist Module Unit-Button is a button display module. This unit is new. It is listed for use in Ainsworth A560 and WMS BB2 slot machine cabinets. Casino Garage supplies replacement parts for casino slot machines and ships worldwide from our warehouse in Miami, Florida.
Part numbers and cross-reference
- Part number: FT02306
- Written with a dash: FT-02306
- Also sold as: LCD Button 1.44
- Casino Garage SKU: SPQR-BUTTON-1
Some suppliers list this module by its screen size, as LCD Button 1.44, rather than by the part number. If your machine lists this part under a different number, send us the number you have and we will confirm whether it is the same part before you order.
Compatibility
- Ainsworth A560
- WMS BB2
Compatibility is listed to the best of our knowledge based on the unit we have in stock. Cabinet revisions vary between operators, so confirm the part number on your existing unit before ordering.
Specifications
| Part number | FT02306 |
| Alternate part number | LCD Button 1.44 |
| SKU | SPQR-BUTTON-1 |
| Part type | Button Module |
| Screen size | 1.44 in |
| Liquid resistant | Yes |
| Condition | New |
| Dimensions | L: 2 In (5.08 cm) - W: 1 In (2.54 cm) - H: 2 In (5.08 cm) |
| Weight | 1 oz (0.03 kg) |
| Ships from | Miami, Florida, USA |
What is included
- 1 x OLED small liquid resistant button module
Unless stated above, cables, brackets and mounting hardware are not included. Ask before ordering if you need a complete assembly.
Installation notes
- Power down the cabinet and disconnect it from mains before removing any component.
- Photograph the existing wiring and connector positions before disconnecting them.
- Compare the part number and connector layout of the replacement against the original unit.
- Installation should be carried out by a qualified slot machine technician, in line with the jurisdiction's gaming regulations.
Frequently asked questions
Is the FT02306 the same as the LCD Button 1.44?
Yes. Some suppliers list this module by its 1.44 in screen size rather than by the part number FT02306. Both refer to the same small liquid resistant button module.
What is the difference between the small and the large module?
This is the small 1.44 in module. The large 1.6 in module is a separate part and is not interchangeable. Measure the opening in your button deck before ordering.
What condition is this part in?
It is listed as new.
Will this fit my A560 cabinet?
This part is listed for Ainsworth A560 and WMS BB2. Cabinet revisions differ between operators, so send us the part number from your existing module and we will confirm the match before you order.
Can I order more than one of these?
Yes. We stock this part in multiples. Current availability is shown on this page; contact us for pricing on bulk or repeat orders.
